EN
| Model | COT40F | COT63F | COT80F | COT100F | COT125F | ||
|
Rated insulation voltage and raged operational voltage AC20/DC20 Dielectric strength Rated impulse withstand voltage |
Pollution degree 3 50Hz 1min. |
V KV KV |
750 6 8 |
750 6 8 |
750 6 8 |
750 6 8 |
750 6 8 |
|
Rated thermal current and rated operational current AC20/DC20 ...with minimum conductor cross section |
Ambient 40°C Ambient 40°C Ambient 60°C Cu |
A A A mm² |
40 40 32 10 |
63 63 50 16 |
80 80 63 25 |
115 115 80 35 |
125 125 100 50 |
| Rated operational current, AC-21A |
up to 415V 440...690V |
A A |
40 40 |
63 63 |
80 80 |
100 100 |
125 125 |
| Rated operational current, AC-22A |
up to 415V 440...690V |
A A |
40 40 |
63 63 |
80 80 |
100 100 |
125 125 |
| Rated operational current, AC-23A |
up to 415V 440V 500V 690V |
A A A A |
23 23 23 12 |
63 63 45 20 |
75 65 58 20 |
80 65 60 40 |
90 78 70 50 |
|
Rated operational current/ poles in series, DC-21A |
24...48V 110V 220V 440V 500V 750V |
A A A A A A |
32/1 32/2 32/3 16/4 16/4 32/8 |
63/1 63/2 63/4 16/4 16/4 |
80/1 80/2 80/4 16/4 16/4 |
100/1 100/2 100/4 |
125/1 125/2 125/4 |
|
Rated operational current/ poles in series, DC-22A |
24...48V 110V 220V 440V 750V |
A A A A A |
32/1 32/2 32/4 10/4 25/8 |
63/1 63/2 45/4 10/4 |
80/1 80/2 45/4 10/4 |
100/1 100/2 63/4 |
125/1 125/2 80/4 |
|
Rated operational current/ poles in series, DC-23A |
24...48V 110V 220V 440V 750V |
A A A A A |
32/1 32/2 32/4 10/4 16/8 |
63/1 63/2 45/4 10/4 |
80/1 80/2 45/4 10/4 |
100/1 100/2 63/4 |
125/1 125/2 63/4 |
|
Rated operational power, AC-23A (These values are given for guidance and may vary acc. to the motor manufacturer) |
220...240V 400...415V 440...500V 690V |
KW KW KW KW |
5.5 11 11 11 |
11 22 22 15 |
22 37 37 18.5 |
22 37 37 37 |
22 45 45 45 |
| Rated breaking capacity, AC-23A |
up to 415V 440V 500V 690V |
A A A A |
184 184 184 96 |
360 360 360 160 |
640 448 464 160 |
640 520 480 320 |
720 624 560 400 |
|
Rated breaking capacity/ poles in series, DC-23A |
24-48V 110V 220V |
A A A |
128/1 128/2 128/4 |
180/1 180/2 180/4 |
252/1 252/2 180/4 |
400/1 400/2 252/4 |
500/1 500/2 252/4 |
|
440V 750V |
A A |
40/4 64/8 |
40/4 |
40/4 |
|||
|
Rated conditional short-circuit current Ip (R.M.S) and corresponding max.allowed cut-off current îc. The cut-off current îc refers to values listed by fuse manufacturers (single phase test acc.to IEC60269) |
50KA ≤415V |
KA A |
16.5 125/125 |
16.5 125/125 |
|||
|
100KA ≤500V |
KA
A |
||||||
|
10KA ≤690V
|
KA A |
8.2 125/100 |
8.2 125/100 |
||||
|
50KA ≤690V
|
KA A |
10 63/63 |
10 63/63 |
||||
| Rated short-time withstand current |
690V,0.25s 690V, 1s |
KA KA |
2.5 | 2.5 | |||
| Rated short circuit making capacity | 690V/500V | KA | 3.6 | 3.6 | |||
|
Rated capacitor power (the capacitor ratings are limited by the fuse link.) |
400-415V | kVAr | 40 | 50 | |||
| Power loss/pole |
At rated operational current |
W | 4.0 | 6.3 | |||
| Mechanical endurance | Oper | 20000 | 20000 | ||||
|
Cable size
|
Cu-wire size suitable for terminal clamps |
mm² AWG |
10-70 8-00
|
10-70 8-00 |
|||
|
Terminal tightening torque Operating torque |

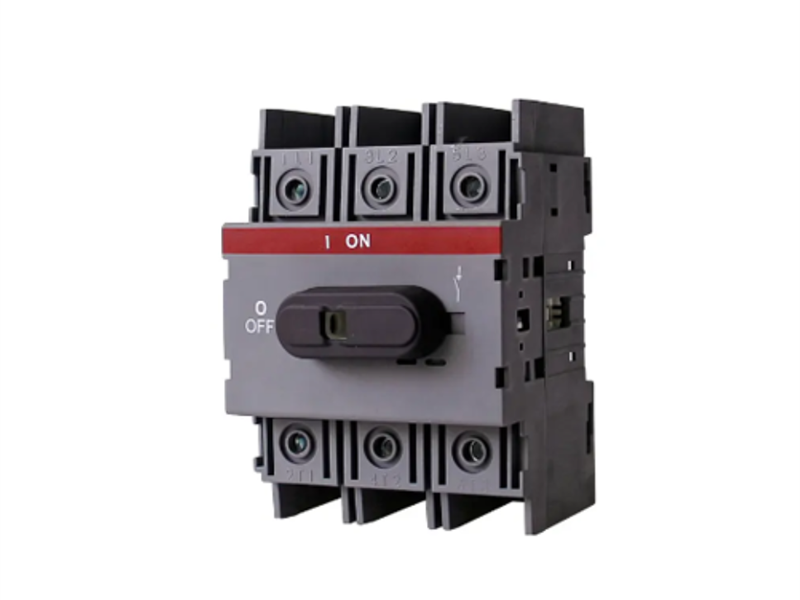

Counter torque required 3-pole switch-disconnector |
Nm Nm |
6
2 |
6
2 |
