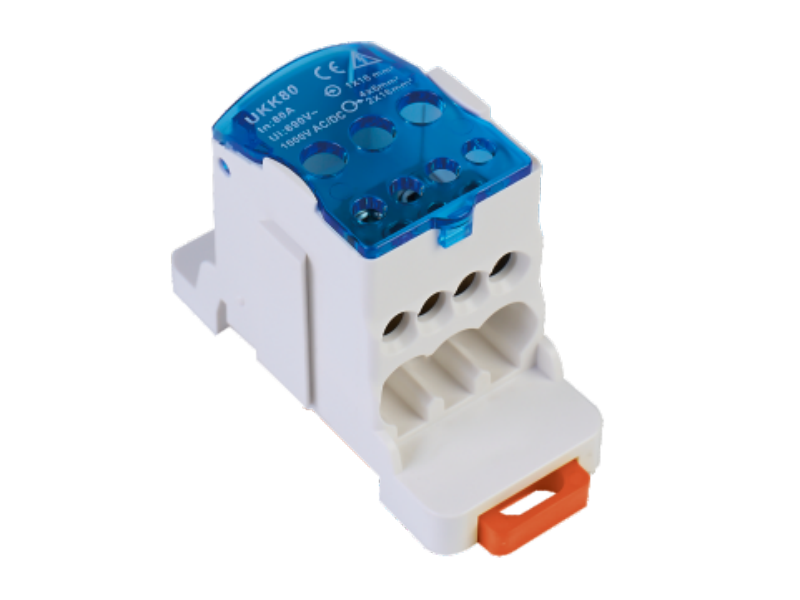

UKK80A Din Rail Power Distribution Box
| Place of Origin |
Zhejiang,China |
| Brand Name |
CHSO |
| Model Number |
UKK80 |
| Color |
Blue and Gray / Customized |
| Number of Contacts |
1-10 |
| Conduct Siza |
11-20 AWG |
| Connector Type |
Screw |
| Material |
Flame resistant Nylon PA66,brass conductor |
| Certificate |
ISO9001/CE/ROHS |
| Mounting Type |
DIN Rail NS 35 |
| Max Voltage |
1000V |
| Max Current |
80A |

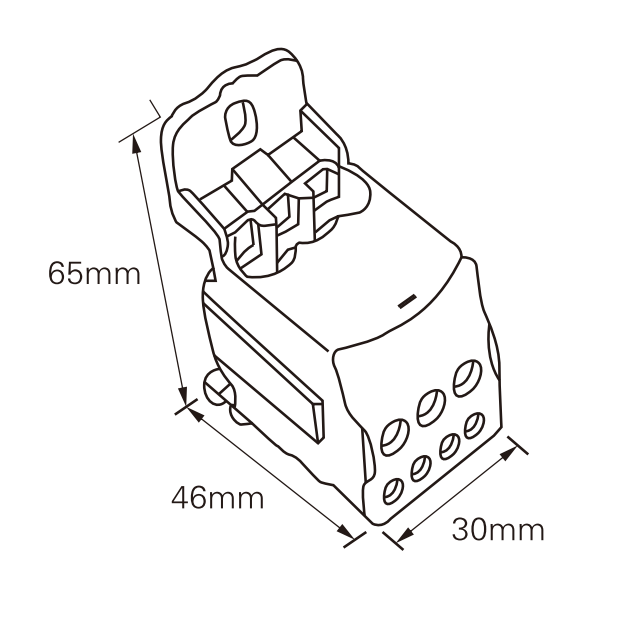

| Length / Wide / Height (mm) |
L66/W29.3/H47 |
| Output Specification |
4X6/2X16mm2 |
| Entry Specification |
1X16mm2 |
| A.W.G |
24-6 |
| Screw |
M2.5 |
