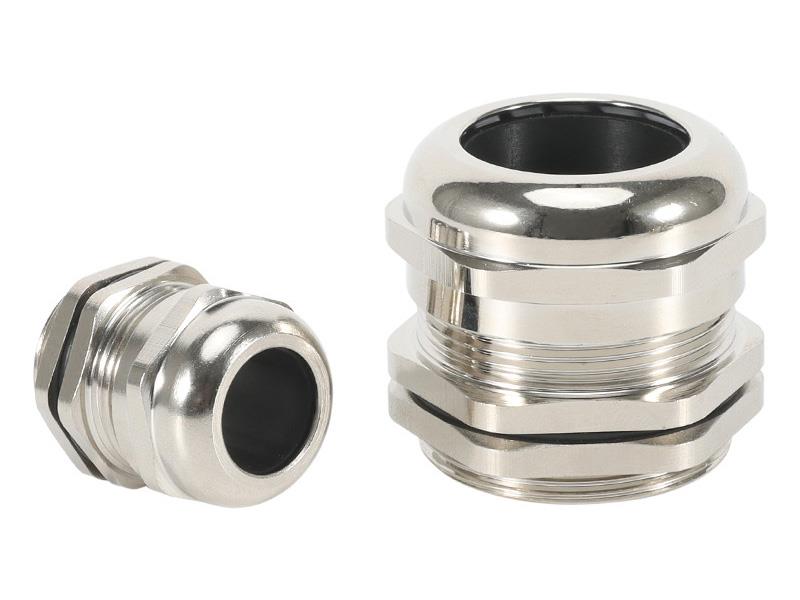

Nickel-Plated Brass Cable Gland
| Thread Specification |
Applicable Cable Range (mm) |
Thread O.D |
Thread Length(mm) |
Spanner Size(mm) |
| M8*1.25 |
2-4 |
8 |
5 |
11/11 |
| M10*1.5 |
3-6.5 |
10 |
6.5 |
14/14 |
| M12*1.5 |
3-6.5 |
12 |
6.5 |
14/14 |
| 4-8 |
12 |
7 |
17/14 |
| M14*1.5 |
4-8 |
14 |
7 |
17/17 |
| M16*1.5 |
4-8 |
16 |
8 |
18/18 |
| 4-8 |
16 |
8 |
20/18 |
| M18*1.5 |
5-10 |
18 |
8 |
20/20 |
| M20*1.5 |
6-12 |
20 |
8 |
20/22 |
| M22*1.5 |
10-14 |
22 |
8 |
22/22 |
| M24*1.5 |
10-14 |
24 |
9 |
24/24 |
| M25*1.5 |
10-14 |
25 |
9 |
24/27 |
| 12-16 |
25 |
9 |
27/27 |
| 13-18 |
25 |
9 |
30/27 |
| M27*1.5 |
13-18 |
27 |
9 |
30/30 |
| M28*1.5 |
13-18 |
28 |
9 |
30/30 |
| M30*1.5 |
13-18 |
30 |
9 |
30/32 |
| M32*1.5 |
15-22 |
32 |
10 |
35/35 |
| M33*1.5 |
15-22 |
33 |
10 |
35/35 |
| M36*1.5 |
18-25 |
36 |
10 |
40/40 |
| M37*1.5 |
18-25 |
37 |
10 |
40/40 |
| M40*1.5 |
18-25 |
40 |
11 |
40/45 |
| 22-30 |
40 |
11 |
45/45 |
| M42*1.5 |
22-30 |
42 |
11 |
45/45 |
| M47*1.5 |
25-33 |
47 |
11 |
50/50 |
| M48*1.5 |
25-33 |
48 |
11 |
50/50 |
| M50*1.5 |
32-38 |
50 |
12 |
57/55 |
| M54*1.5 |
32-38 |
54 |
12 |
54/57 |
| M56*1.5 |
32-38 |
56 |
12 |
57/59 |
| M60*1.5 |
37-44 |
60 |
13 |
64/64 |
| M63*1.5 |
37-44 |
63 |
13 |
64/68 |
| M64*2 |
37-44 |
64 |
13 |
64/68 |
| M72*2 |
42-52 |
72 |
15 |
78/78 |
| M75*2 |
42-52 |
75 |
15 |
78/80 |
| M80*2 |
55-62 |
80 |
15 |
88/88 |
| M88*2 |
65-70 |
88 |
15 |
94/94 |
| M100*2 |
78-84 |
100 |
15 |
110/110 |
